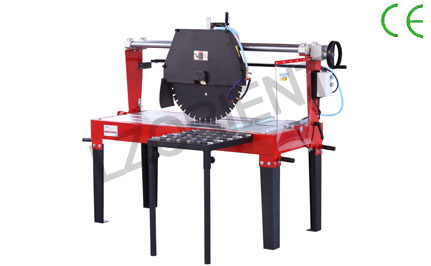

OSC_W650 big stone cutting machine

Name:OSC_W650 big stone cutting machine

Details

Robust,accurate,versatile and economical.Built mainly for cutting blocks,hollow brick and curbstone.Extremely accurate with head sliding by means of linear ball bearings on two chrome-plated and ground bars.Cutting control through belt drive of the head driven by a handwheel positioned at the "operator station".It is equipped with a submersed pump inside the base for disc cooling water regeneration.Vertical motion of the head by means of handwheel for stable and fast control.Inclinable head for 45° cuts.

Handwheel Drive
Cutting operation becames more stable and accurate

Big-sized blade
Big blocks can be cut at one time


Multi-purpose
With different blade, you can cut granite and marble block,firebrick, concrete,and hollow brick etc.

45°Cuts
It's very easy to perform bevel cutting

Rolling table
Loading stone becomes more easier

Model
OSC-W 600S 4kw/380v 600 1440 350 205 150 152x85x94
OSC-W 600L 4kw/380v 600 1440 750 205 190
OSC-W 650S 4kw/380v 650 1440 300 230 160
OSC-W 650L 4kw/380v 650 1440 700 230 200
OSC-W 700L 4kw/380v 700 1440 600 255 210
