The possibility of combining disc and waterjet cutting, together with auxiliary tools such as vacuum cups, camera on bridge and tilting table, make the TITAN PLUS Jet to an advanced cutting center for kitchen countertops, interior decoration and various stone claddings.
Separate worktable for convenient loading and unloading of slab.

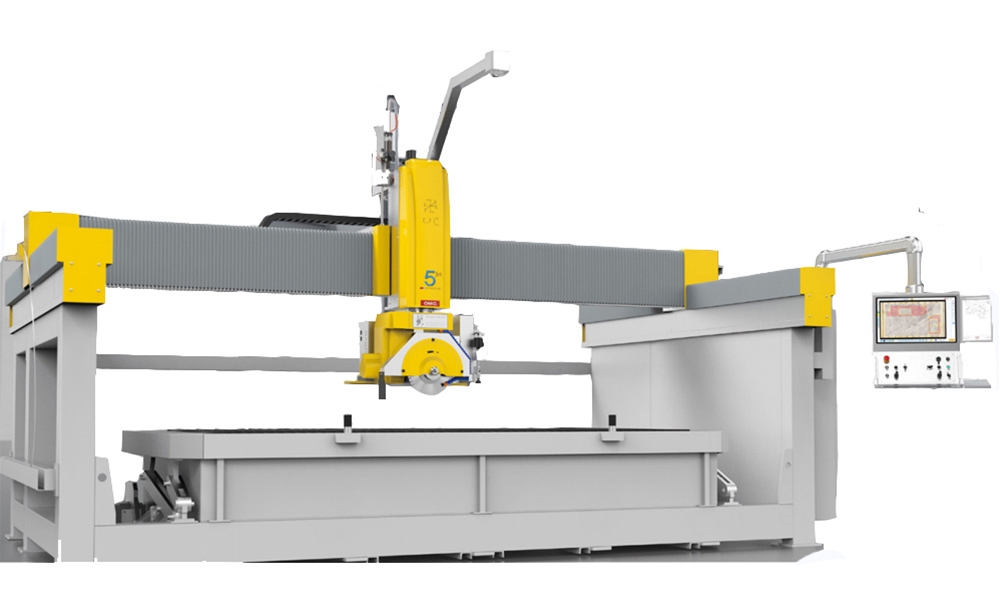

OMC-TITAN PLUS JET is a fully automatic five-axis intelligent bridge cutting machine, which can achieve the main motor -180 to 360° free rotation, combined with the saw blade for 0°-90° inclined cutting, and the water jet spindle can achieve 0 °-60° inclined processing, making it suitable for mass production while reducing costs. It can achieve different complex curved surfaces, and integrate cutting, drilling, carving functions into an organic whole.
Product Parameters
| Motor for disc | 11-18KW |
| R.P.M for disc motor | 2000-6000r/min |
| Disc diameter | 350-500mm |
| X-axis working stroke | 3600mm |
| Y-axis working stroke | 2500mm |
| Z-axis working stroke | 360mm |
| A-axis working stroke | -180-360° |
| B-axis working stroke | 0-90° |
| Workbench size | 3500-2000mm |
| Workbench flip | 0-85° |
| Motor power for waterjet | 37KW |
| Max.pressure for waterjet | 60000PSI(420Mpa) |
| Working pressure for waterjet | 320-340Mpa |
| Continuous working time | 24H |
| Max.water output for waterjet | 3.8L/min |
| Inlet water pressure | ≥0.3Mpa |
| Waterjet max.cutting angle | 60° |
| Voltage | 380V |
| FOB Qingdao price | $88000.00 |
Product Features
1.High speed precision frequency conversion main motor.
2.The high-pressure pump adopts variable frequency servo motor, which is quiet and energy-saving.
3.Thanks to high-pressure cabinet components from the U.S. with a max. pressure of 420Mpa,durable and safe.
4.Self-developed operating system with completely independent intellectual property rights,full graphical operation, photo layout,what you see is what you get.
5.Combination of disc and waterjet allows the optimization of the slab use and the reduction of waste,it's not necessary to move the piece from a bridge saw to a waterjet cutting center to finish it.
6.0 - 85 degree workbench tilting for easy loading and unloading.
7.X, Y, and Z axes adopt linear guide rail and spiral screw from Taiwan to ensure cutting accuracy and stability.
8.Self-developed automatic sewage discharge system for water tanks improves productivity and reduces production costs.
9.Swedish Sandvik brand high-pressure stainless steel pipes durable and stable.
10.Combined technology (disc & waterjet) is extremely versatile, suitable for processing all kinds of marble, granite, sintered stone and ceramic. etc.
11.High-quality cooling cabinet ensures that the hydraulic system of the high-pressure pump can be used stably for a long time.
12.The 5 interpolation axes use 23-bit absolute value servo motors with memory, making the equipment run more smoothly.
|
