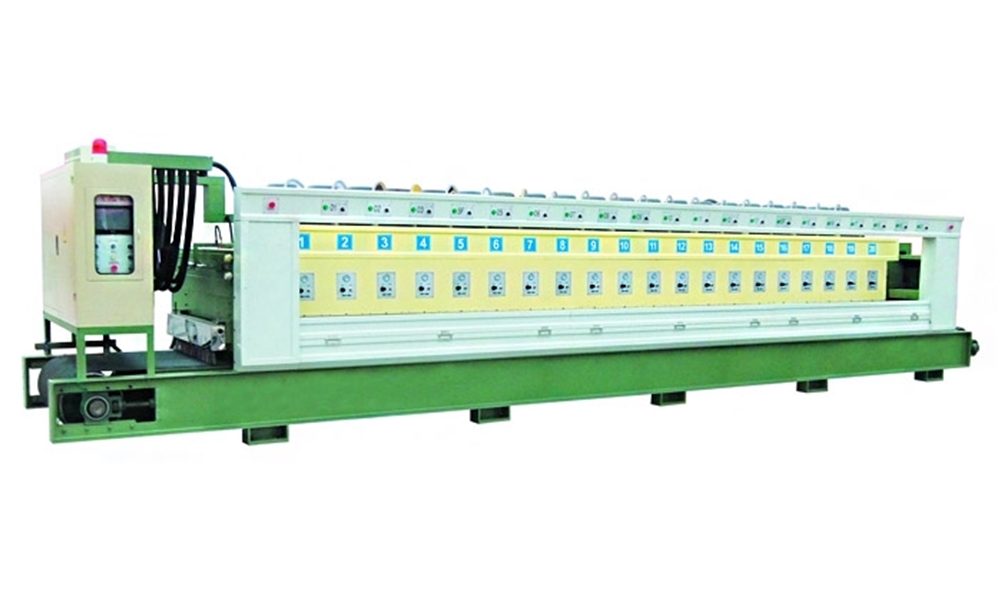

LXM10-16head automatic polishing machine

Name:LXM10-16head automatic polishing machine

Details
The machine uses resin disc as grinding disc, because resin disc is light in weight, small in consumed power, and high in grinding efficiency; air pressure controls lifting and falling of grinding disc and pressuring range is adjustable; oscillating beams can drive grinding disc for moving and movement speed is adjustable; belt of belt-type board-sending workbench can is adjustable; electrical system adopts PLC and human-computer interface.

Grinding disc diameter Φ200mm
Width of grinding and polishing panel 300-1000mm
Thickness of processing panel 10-40mm
The number of grinding head 16pieces
Main motor 12*7.5kw
Weight 6500kgs
Spatial size 7200*2360*2560mm
