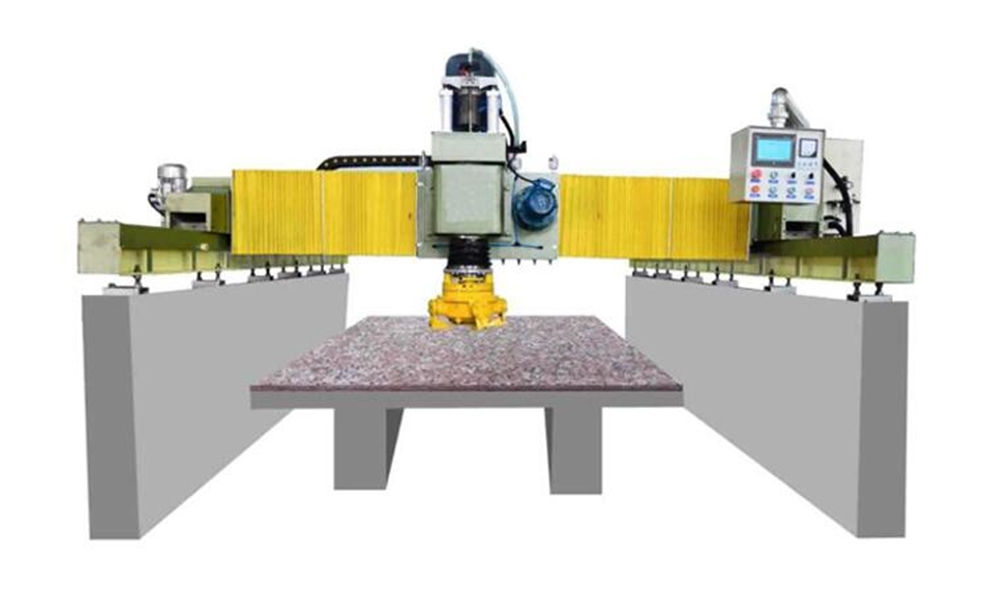

DTM320 * 220 bridge mill

Name:DTM320 * 220 bridge mill

Details
It applies to marble or granite tombstone stone plate and fine grinding and polishing. Using the PC programming, automatically tilting grinding longitudinal waves, shear waves, grinding cycle.

The maximum specification of grinding and polishing panels(L×W) 3200×2000mm
The maximum thickness of grinding and polishing panels 60mm
The number of grinding head 1
Total power 12.5kw
Overall dimension(L×W×H) 4500×4340×2420mm
Weight about 4200kg
Air demand 0.1m3/min
