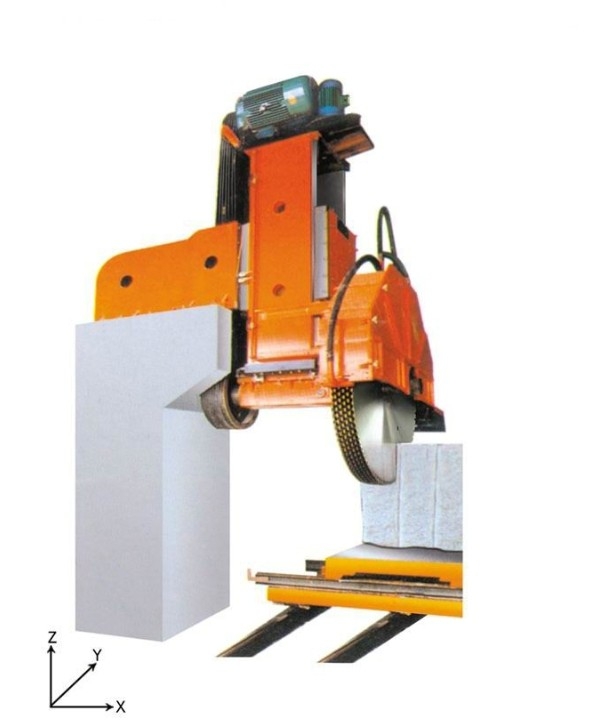

Name：DZJ1600-2000 One-armed Combination Saw
Details
The machine is mainly used for cutting rough granite materials into panels with the thickness of 10mm and above.| Model | DZJ1600 | DZJ2200 |
| Diameter of saw web | Ф1000mm | Ф1600mm |
| Ф1300mm | Ф2200mm | |
| The number of saw web | The five | The five |
| The maximum lifting journey | 1000mm | 1200mm |
| Longitudinal travel of the maximum rough material car | 4000mm | 4000mm |
| Cross travel of the maximum rough material car | 1400mm | 1400mm |
| Table size of skip car | 1800×1300mm | 1800×1300mm |
| Dimension of sawing rough materials | 3500×1400×1350mm | 3500×1400×1350mm |
| Total power | 49.4kw | 49.4kw |
| Overall dimension | 6800×4860×6000mm | 6800×4860×6000mm |
| Gross weight | ～8600kg | ～9400kg |
|
